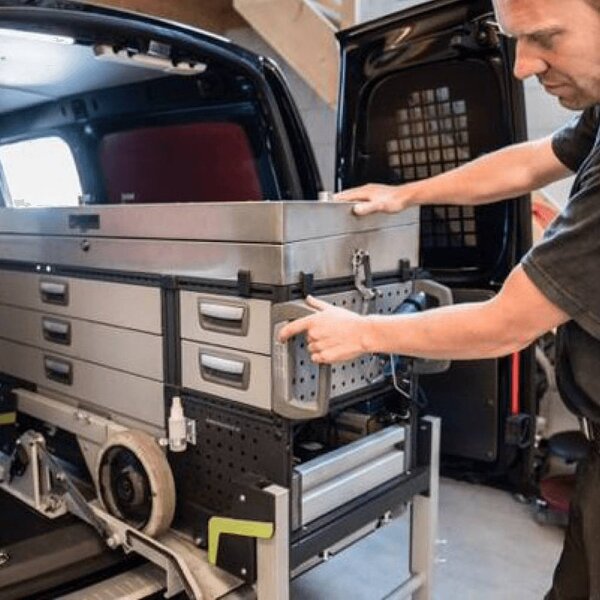

Dynnox is a multifunctional loading and unloading system for vehicles. Thanks to its unique and versatile functionality, Dynnox is a friendly and environmentally friendly means of transportation. You no longer need to lift heavy materials, and Dynnox saves you from having to drive your car frequently.

Dynnox consists of:

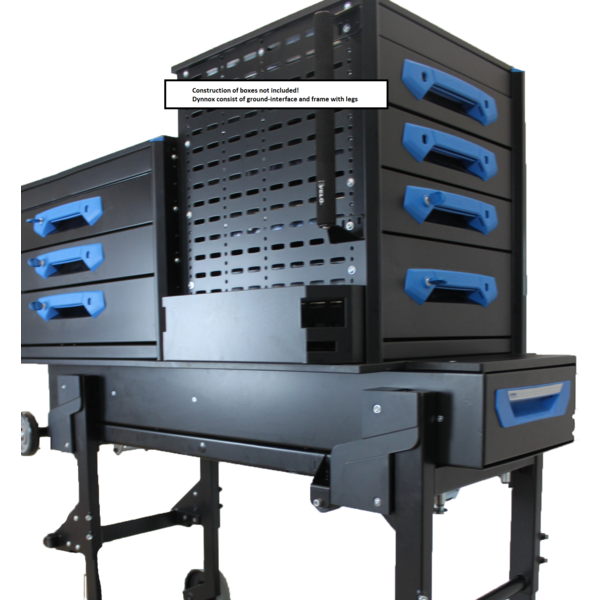

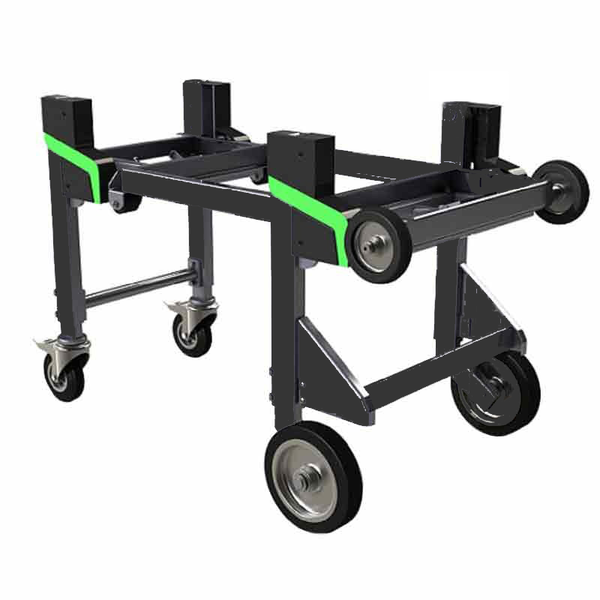

A mobile "frame" whose legs can be folded and folded automatically during loading and unloading. Various additional modules can be mounted on the chassis, such as tool boxes or parts, a workbench and / or various machines and equipment up to a maximum weight of 250 kg.
A "car interface" which guarantees the safety of the vehicle thanks to its optimal fixation. The interface of the car can be mounted firmly on the ground, but also an easily removable mount is possible.
In the vehicle, the automatic locking of the frame guarantees a safe transport. The Dynnox makes loading and unloading extremely easy and fast. At 16 cm above the frame you can make the build on top wider up to 20 cm. Dynnox can be set in height at maximum 58 cm and is therefor usable for almost any car.

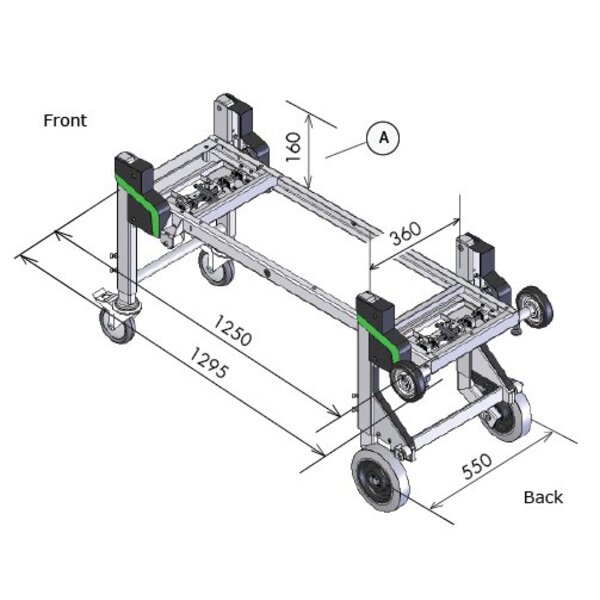

Frame width: 36 cm
Frame length: 125 cm
Weight: ca. 42 kg
Dynnox XL36 width: 55 cm
Dynnox XL36 lenght: 129,5 cm

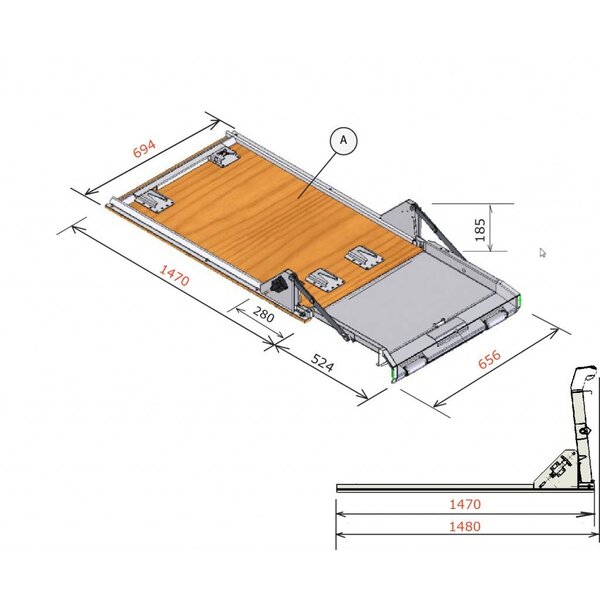

Car interface: Width: 69,4 cm Length: 147 cm
Color: Black (Black Edition)

Installation manual: download
