Productinformation
Dynnox is a multifunctional loading and unloading system for vehicles. Thanks to its unique and versatile functionality, Dynnox is a friendly and environmentally friendly means of transportation. You no longer need to lift heavy materials, and Dynnox saves you from having to drive your car frequently.
Dynnox consists of

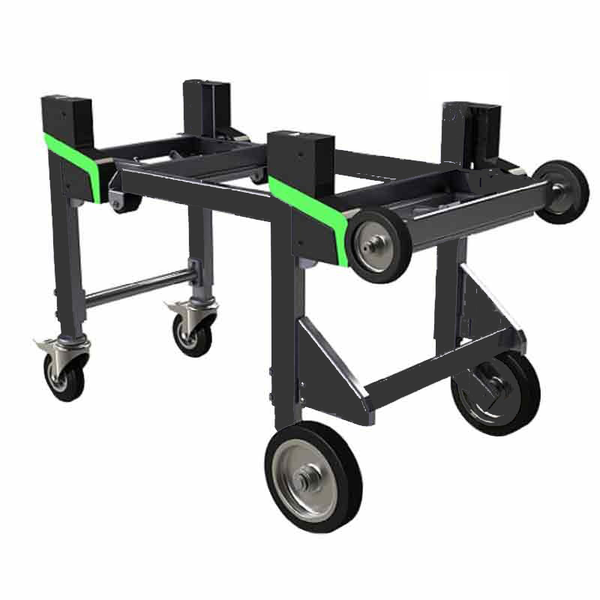

• A mobile "frame" whose legs can be folded and folded automatically during loading and unloading. Various additional modules can be mounted on the chassis, such as tool boxes or parts, a workbench and / or various machines and equipment up to a maximum weight of 250 kg.
• A "car interface" which guarantees the safety of the vehicle thanks to its optimal fixation. The interface of the car can be mounted firmly on the ground, but also an easily removable mount is possible.

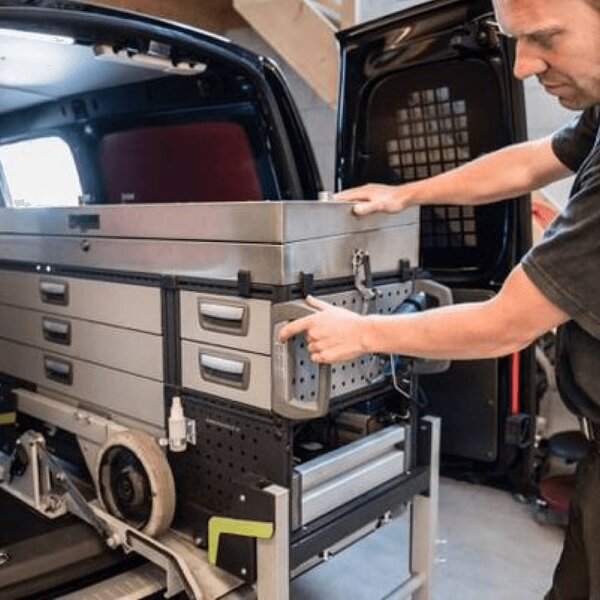

• In the vehicle, the automatic locking of the frame guarantees a safe transport. The Dynnox makes loading and unloading extremely easy and fast.

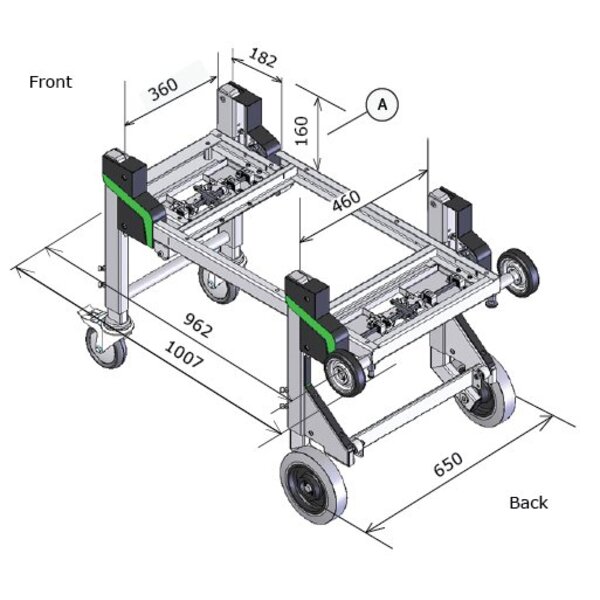

Dimensions
Frame width: 46 cm
Frame length: 96,2 cm
Weight: ca. 42 kg
Please note. This model is smaller at the frontend (36 cm).
Total width including wheels: 65 cm
Total length including wheels: 100,7 cm
Maximum load capacity of 250 kg.

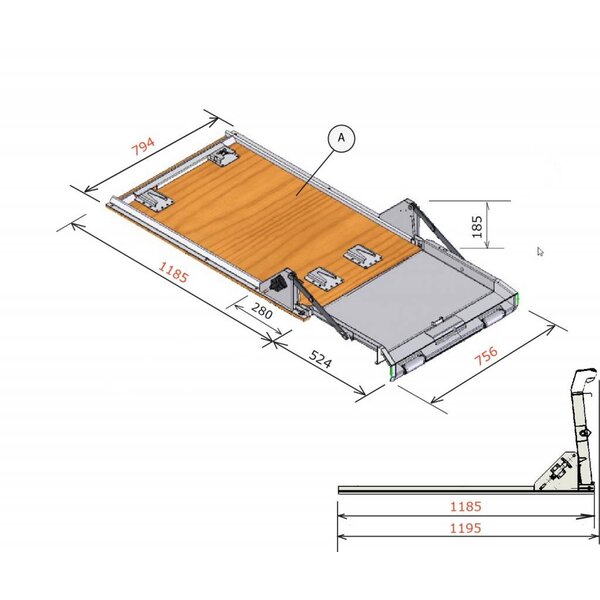

Car interface:
Width: 79,4 cm
Length: 118,5 cm
Installation manual: download
Montagevideo's:
Step 1: the car interface
Step 2: the chassis
Step 3: the relationship between the chassis and the car interface
Extra option: air tires
